NX-ID5142-5
16 Digital Inputs, Standard speed, NPN/PNP 24 VDC, MIL20 connector (not included), 30 mm wide
Especificaciones
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 16 |
| Digital input type | PNP/NPN |
| Permitted voltage at input | 15-28.8 V |
| OFF/ON delay | 0.02-0.4 ms |
| Number of digital outputs | 0 |
| Digital output type | None |
| Output current | 0 A |
| Short-circuit protected outputs | |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO-Link master | |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 2 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 30 mm |
| Product Depth (unpacked) | 89.52 mm |
| Product Weight (unpacked) | 85 g |
Accesorios
| G70V-SID16P | Bloque 16 relés G2RV Entrada plc NPN Push-in+ |
|
|
| G70V-SID16P-1 | Bloque 16 relés G2RV Entrada plc PNP Push-in+ |
|
|
| XW2D-20G6 | Bloque conector 20 puntos E/S Slim |
|
|
| XW2K-20G-T | Sistema de cableado de interfaz de uso general con tecnología push-in plus, conector MIL de 20 puntos, Entrada/Salida, 1 A, NPN/PNP, 125 VCA, 30 VCC, montaje horizontal y vertical en carril DIN |
|
|
| XW2Z-0100DD-L | Cable conexión E/S, MIL20 a MIL20, L = 100 cm |
|
|
| XW2Z-0100DL-L | Cable conexión E/S, MIL20 a punteras, L = 100 cm |
|
|
| XW2Z-0200DD-L | Cable conexión E/S, MIL20 a MIL20, L = 200 cm |
|
|
| XW2Z-0200DL-L | Cable conexión E/S, MIL20 a punteras, L = 200 cm |
|
|
| XW2Z-0500DL-L | Cable conexión E/S, MIL20 a punteras, L = 500 cm |
|
|

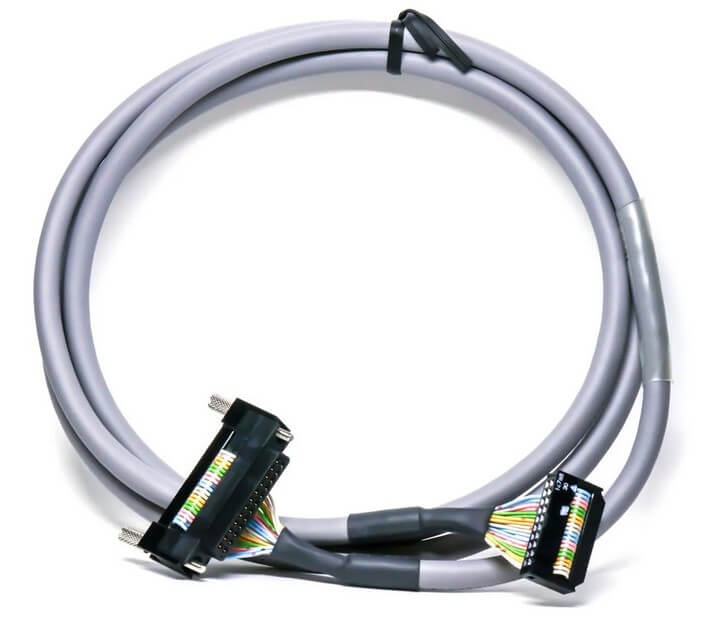

| XW2Z-100X | Cable de conexión de E/S, CJ1W-NCx14/x34 al bloque de terminales XW2B-20G4/G5, 1 m |
|
|
| XW2Z-200X | Cable bloque de terminales a señales externas CJ1WNCxx3 1m |
|
|
| XW2Z-RO50C | Conector MIL a módulo G7xx y XW2x (50cm) |
|
