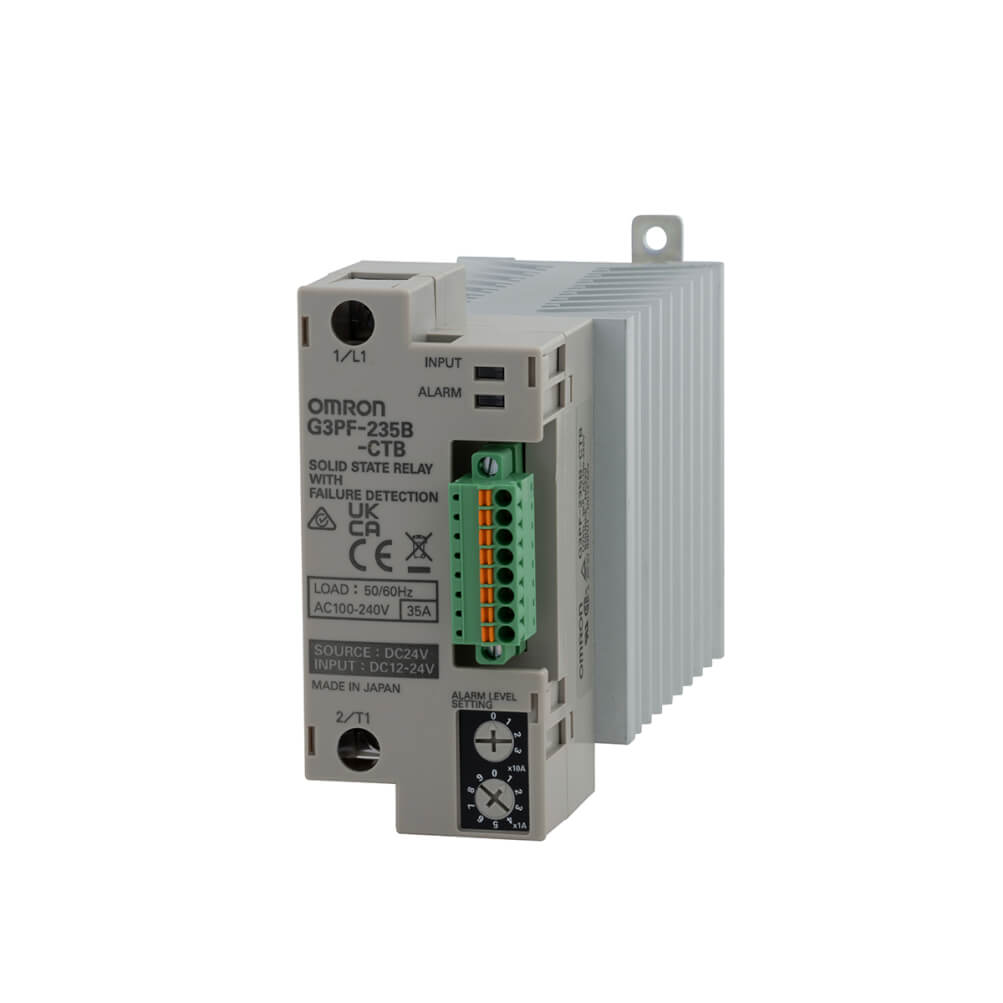

G3PF-235B-CTB 24VDC
35A 240VAC 2 Salidas Teminales Conexión Rápida
Especificaciones
| Application | ON/OFF control |
| Mounting method | DIN rail/screw |
| Terminal | Push-in |
| Complete with socket | |
| LED indicator | |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 75-264 V |
| Control current max. | 10 mA |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 60 °C |
| Minimum operating temperature | -20 °C |
| Isolation | Phototriac |
| Functions | HB/HS alarm for 1-phase heaters |
| Number of phases | 1 |
| Rated operation current Ie at AC-1 | 35 A |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 55 mm |
| Product Depth (unpacked) | 137 mm |
| Supply voltage DC | 9.6-26.4 V |
| Switching at zero-crossing |
